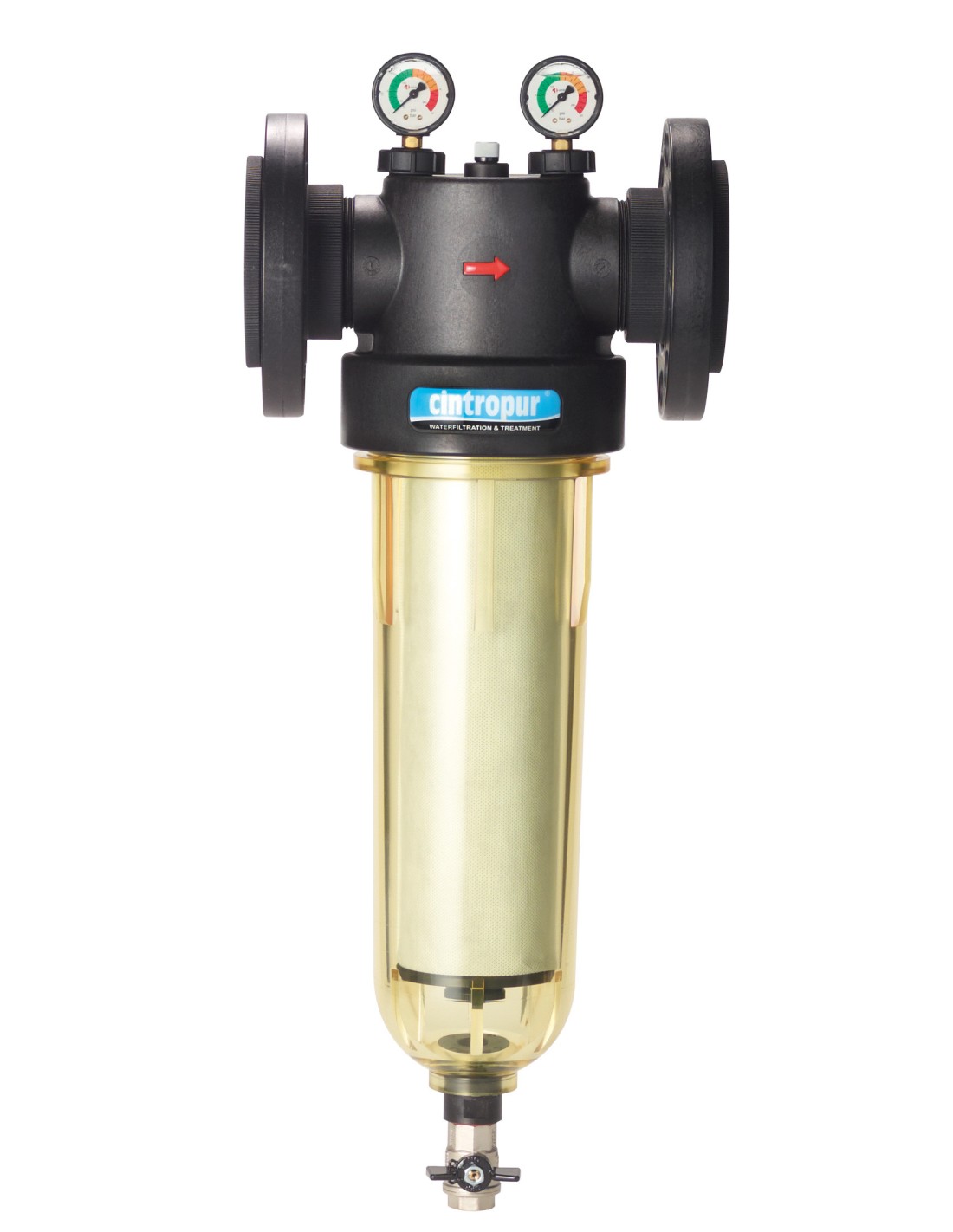

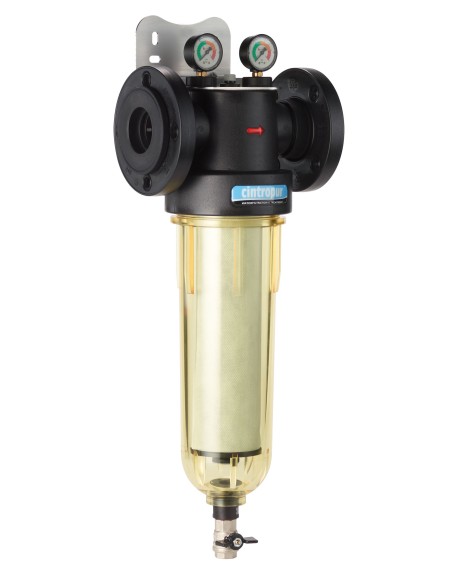

The filters Cintropur are made of the highest quality plastic materials, the filters are suitable for filtering drinking water. The filter chamber of the filter transforms the passage of water into a cyclonic rotation that projects larger particles to the bottom of the cup. The sock filter septum is available with various types of porosity, so as to offer a very wide range of use, as well as the possibility of changing, during use the degree of filtration by finding the ideal compromise between filtering power and flow rate.
The purge valve, located at the bottom of the vessel allows the removal of coarse sediment deposited at the bottom of the filter in a few seconds and removes impurities deposited on the surface of the filter sock.
Flanged hydraulic connections DN 80
double pressure gauge pressure in / pressure out
operating flow rate 32 mc/h
operating pressure 10 bar
max. pressure 16 bar
max. temperature 50°C
Weight 7.4 kg.
standard filtering sock 25 micron
filter surface 1288 cm2
Filter socks available for this model:
1 micron cod. FWVC001NW500
5 micron cod. FWVC005NW500
10 micron cod. FWVC010NW500
25 micron cod. FWVC025NW500
50 micron cod. FWVC050NW500
100 micron cod. FWVC100NW500
